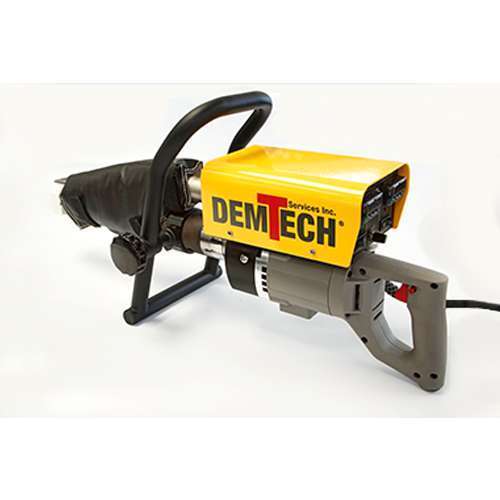

Pro-X5 Extrusion Welder (600-0105/X5/A)

The industry’s new standard extrusion welder for thermoplastic liners, tubing, stiff sheet stock, and a variety of other plastic welding applications.

DEMTECH Services, Inc.’s Pro-X5 Model 600-0105/X5/A Very High Output Extrusion Welder is the new industry standard extrusion welder for production welding of thermoplastic liners, tubing, rigid sheet stock, and many other plastic welding applications. We’ve integrated features and functionalities into its design to suit the needs of the most demanding welding experts, based on our many years of experience in the plastic welding sector.

Model 600-0105/X5/A Pro-X5 Features

• With an extended guarantee, a powerful drive motor with a “bullet-proof” gearbox and custom-built armature and windings.
• High-precision gears (interchangeable with existing Pro-X and Pro-X4 units) for extremely silent operation and longer drive motor life. GUARANTEED!

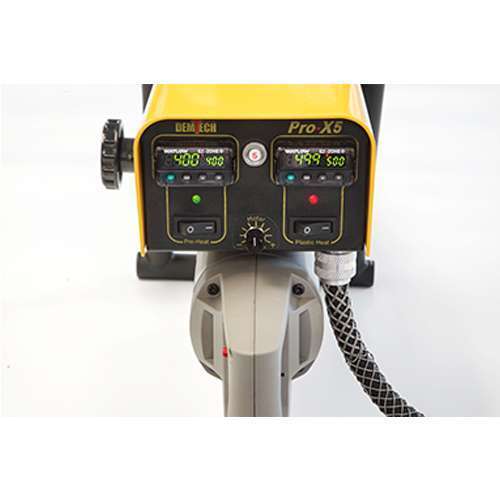

• It’s simple to diagnose and repair electronic components with this small control box. Switches are protected from direct sunlight and inadvertent touch with the cover.
• Inside the control box is an exclusive pre-heat blower. Brushless and low-maintenance No more top-mounted hot air gun!
• Pre-heat and barrel temperatures are measured and controlled separately, with electronic “cold start” safety.

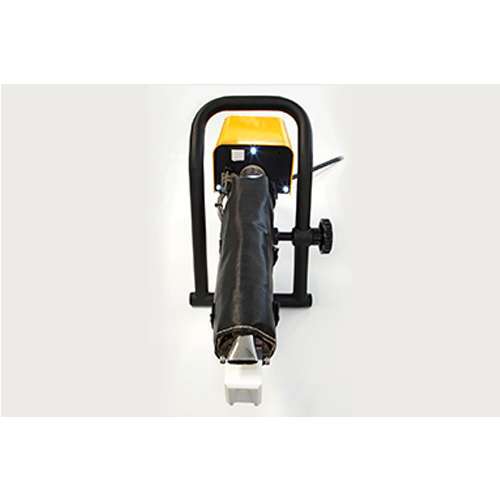

• The ergonomic wrap-around handle can be simply adjusted for right-handed or left-handed usage.
• Preventing pre-heat air from burning a hole in the liner material, the handle doubles as a support, making it nearly hard to tip the welder over.
• High flow rates are achieved with minimal load on the drive motor thanks to the hardened screw and barrel.
• The non-twisting rod feed mechanism makes welding rod management easy. Works with rods that are 4 or 5 millimetres in diameter.
• The temperature is kept under tight control using a custom 1200W barrel heater.

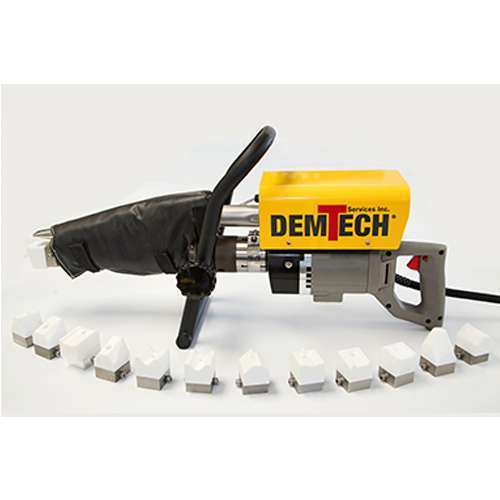

• Demtech’s pre-machined designs or “blanks” come in a variety of welding shoes.
