Electrofusion Machine FORCEMAX30-12K 20MM – 630MM

It is the machine used to fabricate fittings by jointing pipe segments, like elbow, tee, cross and wye. Powered by PLC automatic system, the welding process fully controlled by computer, thus reducing the risk of error occurred by operator.

Electrofusion Machine FORCEMAX30-8K 20MM - 500MM

Electrofusion Machine FORCEMAX30-8K 20MM - 500MM

Electrofusion Machine FORCEMAX30-8K 20MM - 500MM

Electrofusion Machine FORCEMAX30-8K 20MM - 500MM

Electrofusion Machine FORCEMAX30-8K 20MM - 500MM

Electrofusion Machine FORCEMAX30-12K 20MM – 630MM

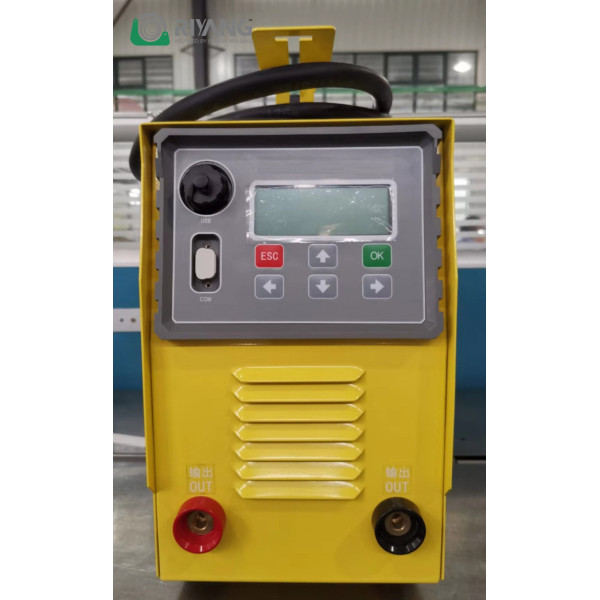

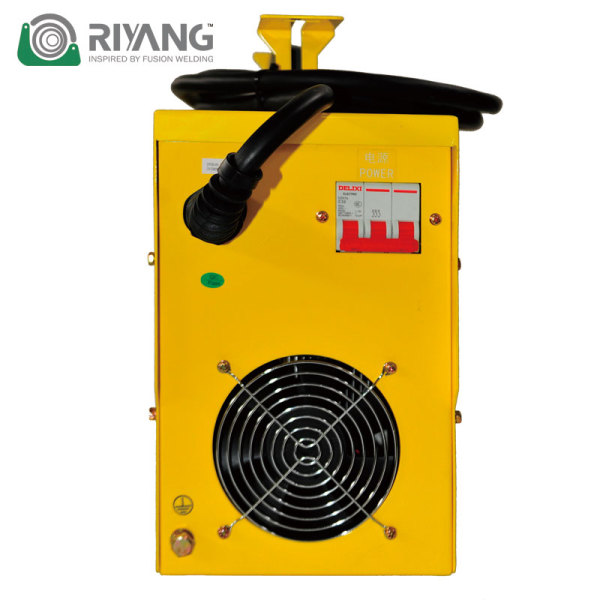

Electrofusion Machine FORCEMAX30-8K is a special connecting device used for polythene pressure and non-pressure pipe electrofusion or socket connection.

Product Details

WELDING RANGE O.D. 20MM – 630MM
RATED POWER 12KW
POWER SUPPLY 380V±20%
RATED CURRENT 80A
RATED VOLTAGE 180V
DIMENSION 455*279*447 MM
NET WEIGHT 26KGS
PACKING MATERIAL ALUMINUM BOX

INPUT POWER SUPPLY

INPUT VOLTAGE 380V±20%
INPUT FREQUENCY 40~65HZ

OUTPUT POWER SUPPLY

RATED VOLTAGE 180V
RATED POWER 12KW

CONTROL CHARACTERISTICS

CONTROL MODE CONSTANT VOLTAGE, CONSTANT CURRENT
ELECTRIC QUANTITY CONSTANT PRECISION ≤ ±0.5%
TIME CONTROL PRECISION ≤ ±0.01%
TEMPERATURE MEASURING PRECISION ≤1%

FUNCTIONAL CHARACTERISTICS

PROGRAMMING WELIDNG FUNCTION SUPPORT MULTIPLE PROGRAMMING WELDING, ADAPT TO DIFFERENT PIPE WELDING REQUIREMENTS
PAUSE HOLD FUNCTION OF WELDER SET SUSPENDED WELDING IN THE WELDING PROCESS, AND CONTINUE TO WELDING AFTER PUASE CANCELED.
DATA STORAGE FUNCTION STORAGE WELDING RECORDS, ENGINEERING CODE, PIPE INFOMATION.
USB INTERFACE FUNCTION USB DATA IMPORT AND EXPORT

AMBIENT

AMBIENT TEMPERATURE -20 ~ 50℃
STORAGE TEMPERATURE -30~70℃
HUMIDITY 20%~90%RH, NO CONDENSATION
