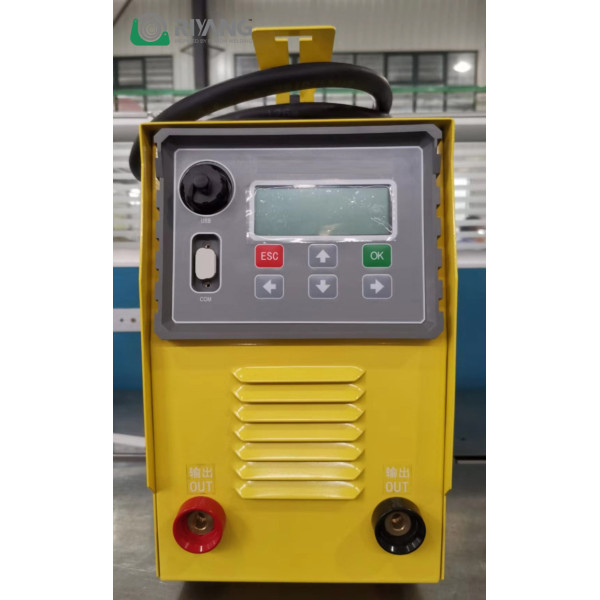

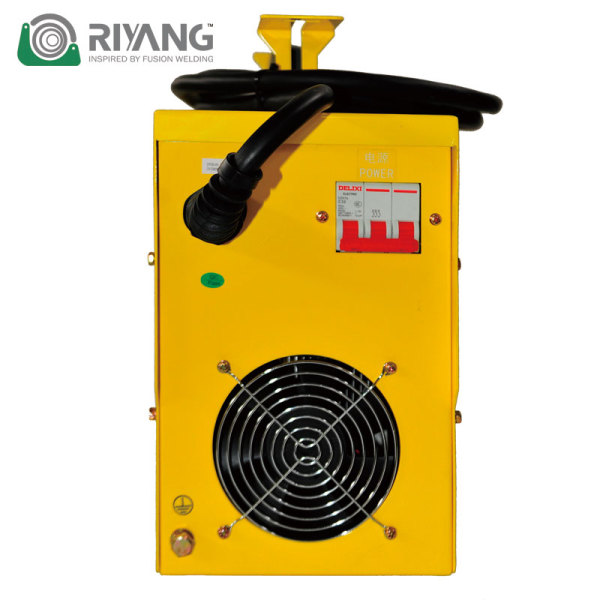

Electrofusion Machine FORCEMAX30-3K5 20MM – 315MM
It is the machine used to fabricate fittings by jointing pipe segments, like elbow, tee, cross and wye. Powered by PLC automatic system, the welding process fully controlled by computer, thus reducing the risk of error occurred by operator.
Electrofusion Machine FORCEMAX30-3K5 20MM – 315MM
Electrofusion Machine FORCEMAX 30-3K5 is a special connecting device used for polythene pressure and non-pressure pipe electrofusion or socket connection.
Product Details
WELDING RANGE O.D.20MM – 315MM
RATED POWER 3.5KW
POWER SUPPLY 220V±20%
RATED CURRENT 60A
RATED VOLTAGE 70V
DIMENSION 396*203*335 MM
NET WEIGHT 13KGS
PACKING MATERIAL ALUMINUM BOX
INPUT POWER SUPPLY
INPUT VOLTAGE 220V ±20%
INPUT FREQUENCY 40~65HZ
OUTPUT POWER SUPPLY
RATED VOLTAGE 70V
RATED POWER3.5KW
CONTROL CHARACTERISTICS
CONTROL MODE CONSTANT VOLTAGE, CONSTANT CURRENT
ELECTRIC QUANTITY CONSTANT PRECISION ≤ ±0.5%
TIME CONTROL PRECISION ≤ ±0.01%
TEMPERATURE MEASURING PRECISION ≤1%
FUNCTIONAL CHARACTERISTICS
PROGRAMMING WELIDNG FUNCTION SUPPORT MULTIPLE PROGRAMMING WELDING, ADAPT TO DIFFERENT PIPE WELDING REQUIREMENTS
PAUSE HOLD FUNCTION OF WELDER SET SUSPENDED WELDING IN THE WELDING PROCESS, AND CONTINUE TO WELDING AFTER PUASE CANCELED.
DATA STORAGE FUNCTION STORAGE WELDING RECORDS, ENGINEERING CODE, PIPE INFOMATION.
USB INTERFACE FUNCTION USB DATA IMPORT AND EXPORT
AMBIENT
AMBIENT TEMPERATURE -20 ~ 50℃
STORAGE TEMPERATURE -30~70℃
HUMIDITY 20%~90%RH, NO CONDENSATION
