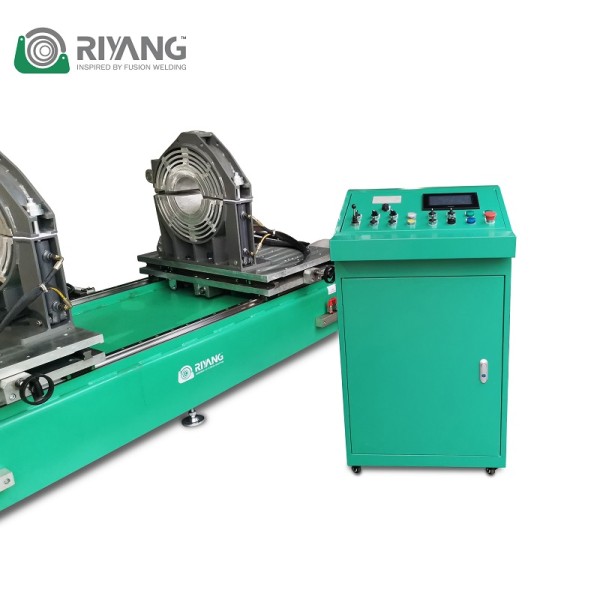

Fitting Fabrication Machine ATLA630 CNC 315MM – 630MM
It is the machine used to fabricate fittings by jointing pipe segments, like elbow, tee, cross and wye. Powered by PLC automatic system, the welding process fully controlled by computer, thus reducing the risk of error occurred by operator.
Fitting Fabrication Machine ATLA630 CNC 315MM – 630MM
ATLA fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses, and wyes up to 630mm.
With the help of jaws, it could make different fittings of various sizes.
The ATLA630 CNC welding machine could weld plastic materials like HDPE, PP, PVDF.
Product Details
ELBOWS OD 315MM – 630MM ( 0º – 90º )
TEES & CROSSES OD 315MM – 630MM
WYES ( *OPTION ) OD 315MM – 630MM ( 45º – 60º )
MATERIALS HDPE – PP – PPR – PVDF – PVC
TOTAL POWER 34.2KW
POWER SUPPLY 380VAC, 3 PHASE, 50/60HZ
Standard Composition
Featured by

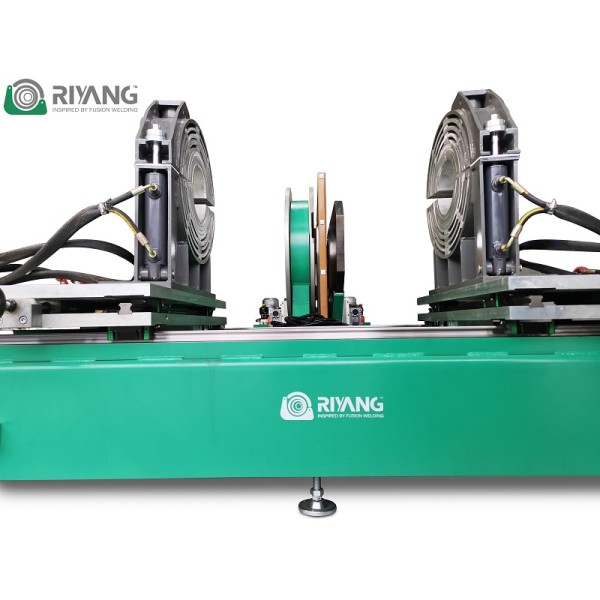

– A machine body with two working tables, both driven by the hydraulic system;
– A operation panel with an automatic control system makes the whole welding process in a simple, efficient, and precise way. After setting the welding data (SDR, Pipe diameter, Standard requirement ), the welding machine will start welding automatically, so that the operators could mainly focus on the welding process, stay away from other interference. And the build-in memory could record the welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or automatically read out by connecting a printer;
– A milling cutter with hydraulic movement in/out, started by an electrical motor;
– A Teflon coated heating plate with hydraulic movement in/out;
– With a full set of aluminum inserts and steel clamps, which make fittings elbows, tees, and crosses.
Options
– Wyes clamps φ630 (45°and 60°): inserts from 315mm to 560mm
– Clamps for welding flange necks
– Imperial inserts
– Hydraulic open/close elbows clamp
– Hydraulic open/close tees and crosses clamp
– Hydraulic locking
