Hydraulic Butt Fusion Machine V200 50MM-200MM | HDPE Fusion Machine

The hydraulically operated butt fusion machine is featured by robust, compact and rugged reliability. The hydraulic power station gives sufficient pressure to butt fusing pipes and fittings with a variety of pressure ratings. And Riyang hydraulic butt fusion machine is compatible with Riyang data logger, which records and documents the key parameters of the fusion process.

Hydraulic Butt Fusion Machine V200 50MM-200MM | HDPE Fusion Machine

Hydraulic Butt Fusion Machine V200 50MM-200MM | HDPE Fusion Machine

Hydraulic Butt Fusion Machine V200 50MM-200MM | HDPE Fusion Machine

Hydraulic Butt Fusion Machine V200 50MM-200MM | HDPE Fusion Machine

Hydraulic Butt Fusion Machine V200 50MM-200MM | HDPE Fusion Machine

V200 is an on-site hdpe fusion machine suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF, and other thermoplastics material.

The machine is used to butt weld pipe and fittings such as elbow, tees, wye, and flange necks without any additional equipment by simply adjusting the clamps and drag bar.

Product Details

WELDING RANGE O.D. 50MM – 200MM
PISTON AREA 6.27 CM²
POWER SUPPLY 220V±10%, 50/60HZ
TEMPERATURE RANGE MAX. 320ºC
HEATER POWER 1.5KW
PACKING DIMENSION 820*400*440 MM, 450*470*550 MM, 650*340*380 MM
TRIMMER POWER 0.75KW
PUMP POWER 0.75KW
WORKING PRESSURE RANGE 0 – 80 BAR
GROSS WEIGHT 156KGS

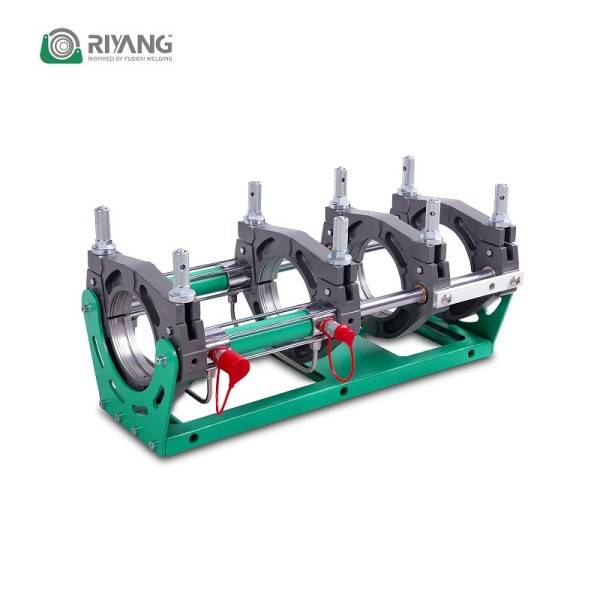

Basic Frame

Featured by

Oil seal kit, origins from Germany, make sure that the pressure performance stays in a more stable way.

4sets quick coupling helps the operator to prepare the machine better before and after welding, and we use STUCCHI which from Italy ensures no hydraulic oil leakages when unplug or plug in.

Using an integral shaft (top chromate treatment) instead of the assembled shaft, ensure the chassis strength to avoid possible frame twist or deform when dragging the pipe with extreme parameters.

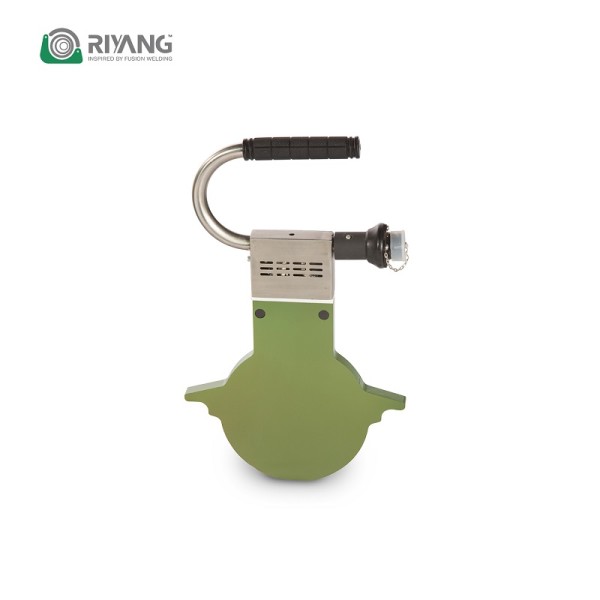

Heating Plate

Featured by

We use Dupont from the USA for coating the heating plate, which is the best in the industry. It’s many stickers on an aluminum plate, more non-sticky to plastic pipes surface. The temperature deviation of different points on the heating plate is 2-3 degrees (small size machine) and 5-6 degrees (big size machine).

Trimmer

Featured by

Safety Switch, which guarantees the operators’ security, even with power on, the trimmer will not be running if operators do not press the button.

Support

Featured by

Ergonomic design

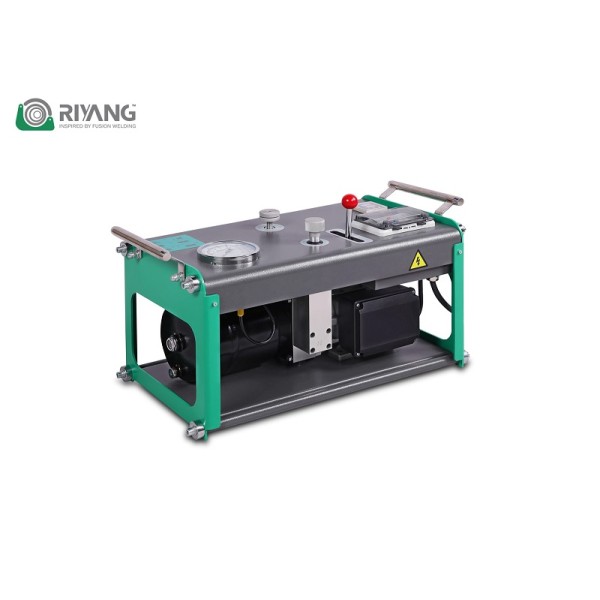

Hydraulic Power Station

Featured by

Solid relays have a bigger load capacity and working in a more stable situation, which has a much longer life.

The circuit breaker works with an electricity leakage protection switch. Including the earth wires, there’re 2 elements to activate the protection when electricity is leaking.

Non-fan motor (small size machines), waterproof, sand-proof, and dust-proof at a higher level. The motor provides sufficient/full power to provide support for hydraulic power.
