PRODUCTS / Socket Fusion Machines
Socket Welder RRQ-110 | RIYANG STORE
It is the machine used to fabricate fittings by jointing pipe segments, like elbow, tee, cross and wye. Powered by PLC automatic system, the welding process fully controlled by computer, thus reducing the risk of error occurred by operator.
Socket Welder RRQ-110 | RIYANG STORE
Socket Welder RRQ-110 is used for PP-R, PE pipes, and fittings.
Product Details
WELDING RANGE Φ75-110MM
RATED VOLTAGE A.C 220/230V, 50/60HZ
WORKING TEMPERATURE 260℃ ±30%
POWER 1200/1310W
ENVIRONMENT TEMPERATURE -5℃ ~ 45℃
APPLICABLE MATERIAL PP-R, PE, PP, PB, PVDF
NET WEIGHT 2KG
PCS/CARTON 2
CARTON SIZE 460x265x265 MM
WEIGHT/CARTON 21.5KG

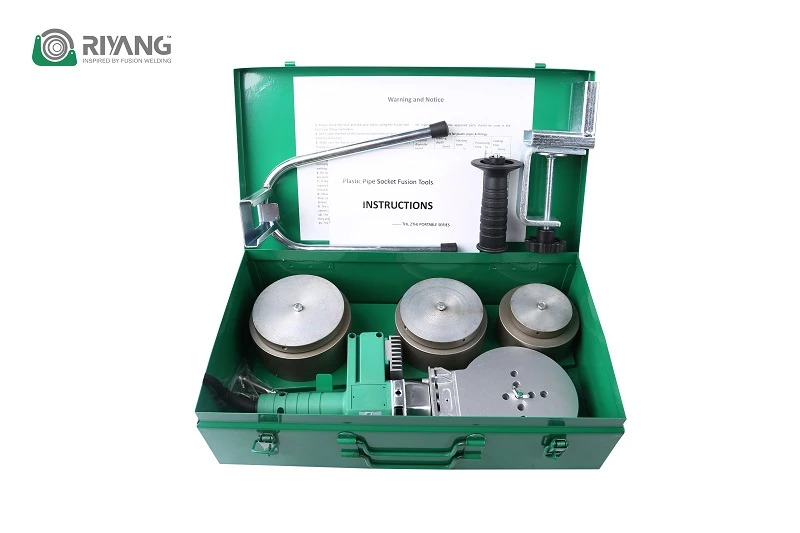

Including
1. Heating plate with Teflon coated.
2. Two kinds of the removable supporting stand, welding at multi-directions.
3. A set of dedicated wrenches, convenient to use and carry.
4. Electronic constant temperature controller and indicating light.
5. Thermal insulation handle made of reinforced nylon.
6. Sockets with high-quality adhesive coating, for a longer lifetime and great fusion effect.
7. There is a thermal baffle between the heating plate and handle to protect users and make the machine firmer.
