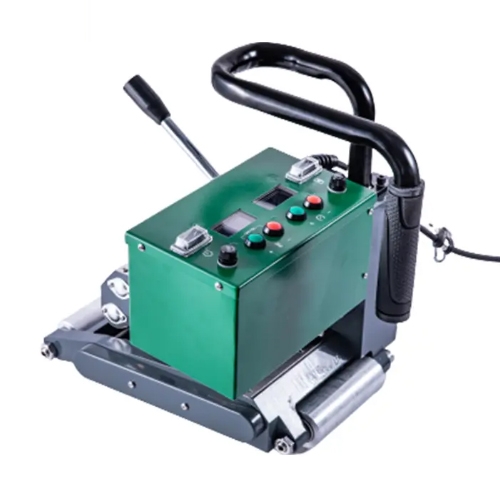

Hot Wedge Welder / Dual Display Professional Geomembrane Welding Machine WIN 900D
Dual Display Professional Geomembrane Welding Machine WIN 900D
Digital display Heavy-Duty Geo Hot Wedge Welder.
The welding machine adopts advanced heat chip structure, high power, high pressure, fast welding speed, suitable for 1.0-3.0mm thick film material welding machine, suitable for HDPE, LDPE, PVC, EVA, ECB, PP and other hot melt materials, Products are used in water conservancy, aquaculture, landfill, chemical and mining, sewage treatment, roof construction and other fields of waterproof and seepage control engineering.
This machine is not only able to show the welding temperature and welding speed, the control system adopts closed loop control, regardless of the external voltage change, or upward or downward direction of welding under the condition of the external environment changes, such as negative feedback automatically adjust the setting temperature and speed, make the welding parameters is more stable, more reliable welding quality.
To meet the voltage requirements of 120V and 230V different countries and EU standard, US standard, UK standard plug requirements.
Small orders accepted.
To meet small batch customized services.
Fault code display.
CE certification testing by third party.
Closed-Loop System for Temperature and Speed
The machine adopts temperature and speed double closed-loop control system, accurate control of welding temperature and welding speed, even in the supply voltage has a little fluctuation and environmental temperature changes, can automatically adjust, to ensure the quality of welding
Dual LCD display
The control panel is respectively displayed by 2 LCD, temperature and speed. Convenient at any time to see the set temperature and the actual temperature, set speed and the actual speed. Add and Subtract button for easy adjustment.

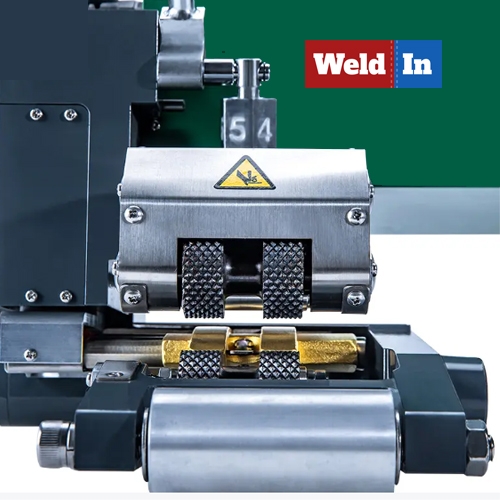

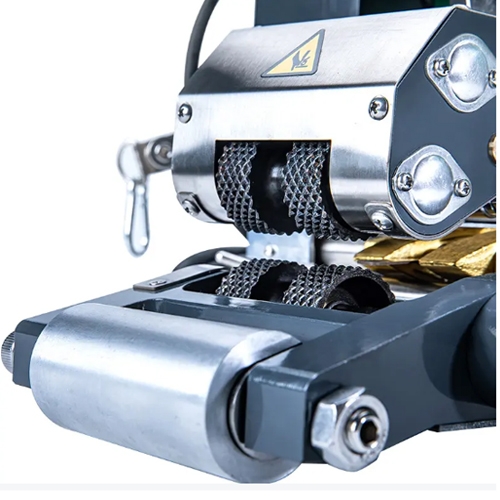

Pressure Adjustment System
The advanced T-shaped cantilever head design and pressure adjustment mechanism ensure that the left and right weld bead pressure is balanced and the weld seam is uniform, and the welding pressure is continuously adjustable.
Heating System
Super-power alloy wedge knife and unique heating design, higher heating efficiency, good welding performance and long service life.
Model WIN 900D
Rated Voltage 230V/120V
Rated Power 1800W/1650W
Frequency 50/60HZ
Heating Temperature 50~450℃
Welding Speed 1.0-5m/min
Material Thickness Welded 1.0mm-3.0mm (single layer)
Seam Width 15mm*2,Interior Cavity 15mm
Weld Strength ≥85% material
Overlap Width 12cm
Digital Display Temperature and speed dual display
Welding pressure 100-1000N
Body weight 13kg
Warranty 1 year
