Electromagnetic welding gun
Using the principle of electromagnetic induction heating, through non-contact induction, the induction gasket will instantly heat and melt, and it will be firmly adhered to the waterproof board.

Main control box
High-power automatic frequency modulation digital circuit is adopted, and the design of over-current and over-heat protection is added, making it safer and more reliable to use.

Special hot melt gasket
Matching special hot-melt gaskets, faster welding speed and better welding effect.

LCD display
Digital LCD screen display, easy and intuitive operation, efficient and stable use.

Model WIN – C4200
Rated Voltage 230V
Rated Power 4200W Adjustable
Frequency 50Hz
working frequency automatic
Welding surface≥ φ75mm
weight 7.5kg
Dimensions (length × width × height) 260 x 280 x 110mm
Warranty 1 year

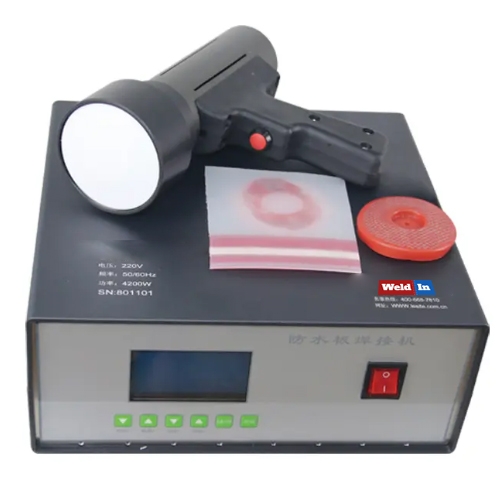

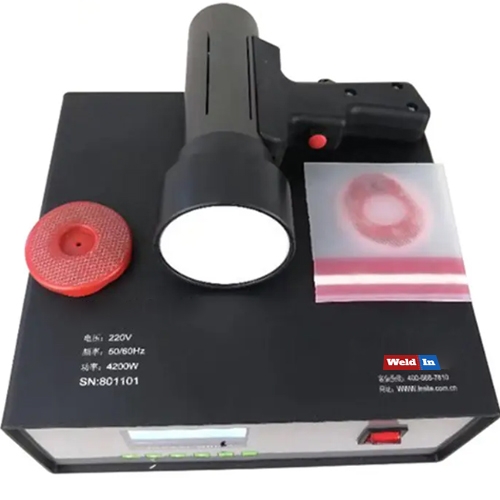

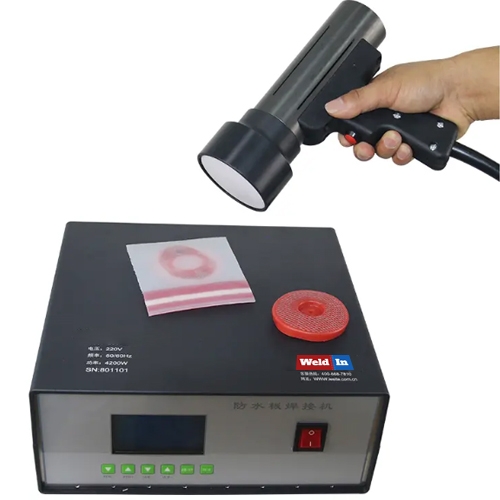

Electromagnetic wave welder WIN-C4200
