Hand Extruder / Extrusion Welder Granules WIN 620

Extrusion Welder Granules WIN 620

Extrusion Welder Granules WIN 620

Extrusion Welder Granules WIN 620

Extrusion Welder Granules WIN 620

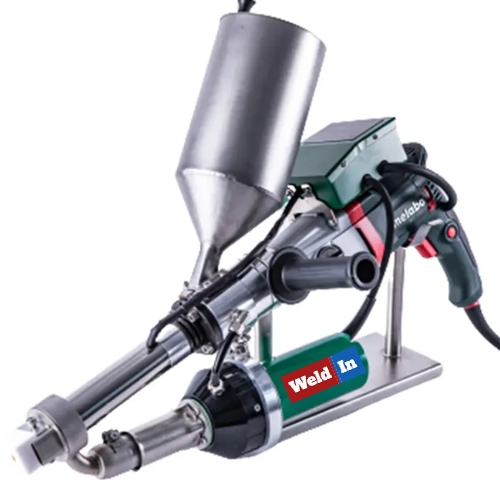

This plastic extrusion welder is the first plastic granules extrusion welder in China that has functions of double independent heating systems, digital display controller, 360-degree rotating welding head, motor cold start protection, which is applicable to welding PE, PP and other hot melt materials.

The intelligent control system adopts double protection, the cold start protection of the driving motor and the automatic compensation of the heating temperature to improve the reliability of the use of the extrusion welding torch, to avoid the fault caused by misoperation to the equipment as far as possible, and extend the service life of the machine.

Provide neutral packaging and small batch of customized services

Provide a variety of welding boots small batch customization services

The LCD display of the control box is more intuitive and convenient

CE certification testing by third party


Double Heating System
Granules feed heating system and hot air heating system make sure the best welding quality.

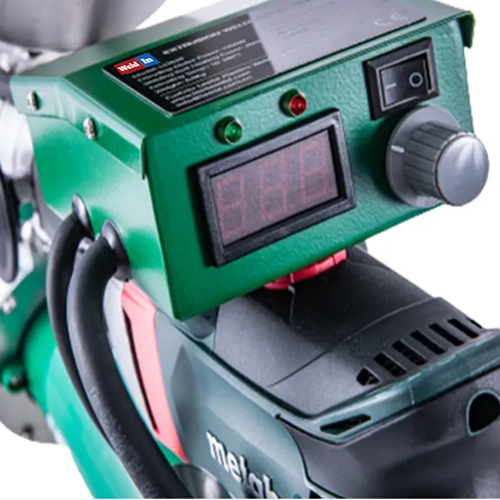

Digital Display Controller
Microcomputer chip controller makes easy operation.

360 degree Rotating Welding Head
The 360-degree rotating hot air welding nozzle can be applied to different needs.

Motor Cold Start Protection
Extruding motor will shut down automatically if it has not reached the preset melting temperature,which avoids loss caused by operating mistake.

Plastic Granules Feeding
Plastic granules feeding barrel makes extruding volume largely and being operated easily.

Model WIN 620
Rated Voltage 230V
Frequency 50/60HZ
Extruding Motor Power 1300W
Hot Air Power 1600W
Plastic Granules Heating Power 800W
Air Temperature 20-620℃
Extruding Temperature 50-380℃
Extruding Volume 2.0-3.5kg/h
Granules Diameter φ3.0-5.0mm
Driving Motor METABO
Body weight 8.0kg
Certification CE
Warranty 1 year
