Control System
Advanced intelligent digital control system which temperature and speed readed on LCD screen.

Pressure Adjustment System
Advanced”T”style jib design and pressure regulation structure.

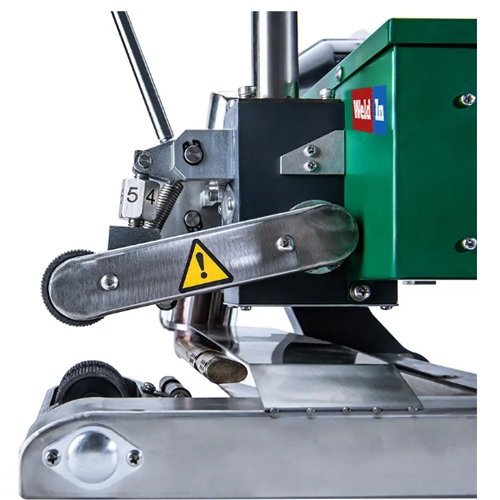

Pressure Roller
Special stainless steel pressure rollers with strong pressure force.

Heating System
Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment.

Model WIN 700
Rated Voltage 230V/120V
Rated Power 2800W/2200W
Frequency 50/60HZ
Heating Temperature 50~620℃
Welding Speed 0.5-3.5m/min
Material Thickness Welded 0.5mm-2.0mm single layer
Seam Width 15mm*2,Interior Cavity 15mm
Weld Strength ≥ 85% material
Overlap Width 16cm
Dimensions (length × width × height) mm
Body weight 7.5kg
Warranty 1 year

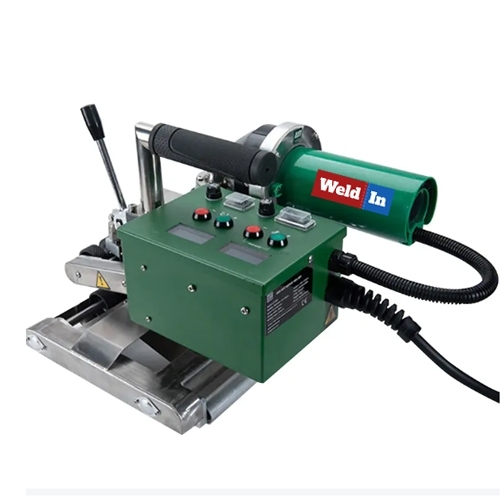

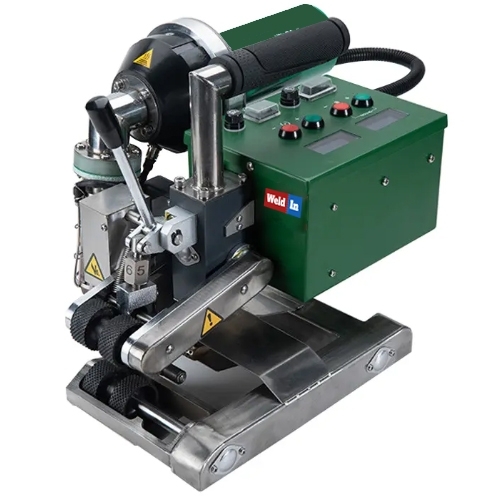

Geo Hot Air Welder WIN 700
