Hot Wedge Welder / HDPE Geomembrane Wedge Welder WIN 810

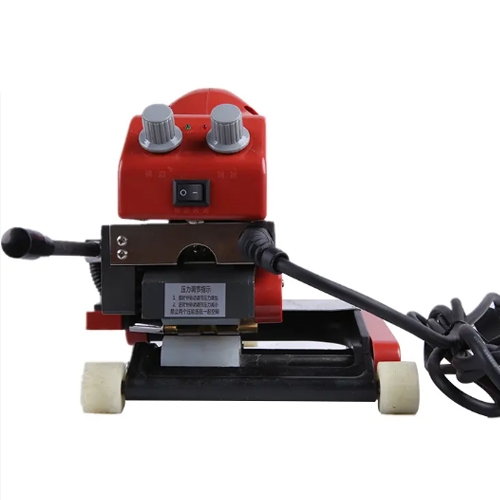

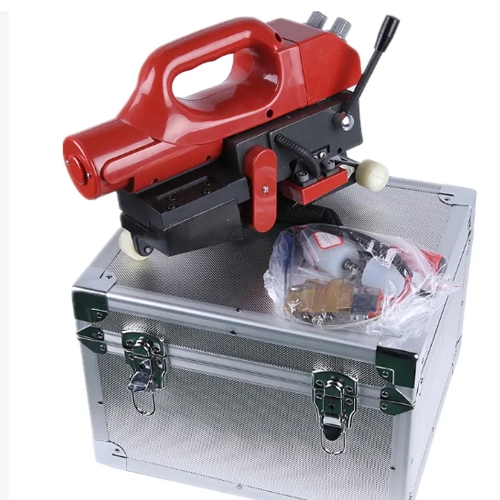

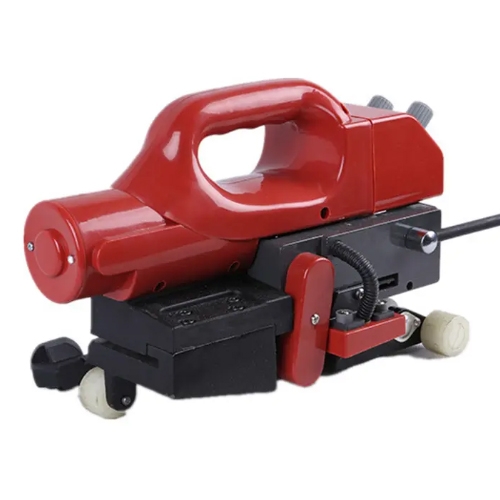

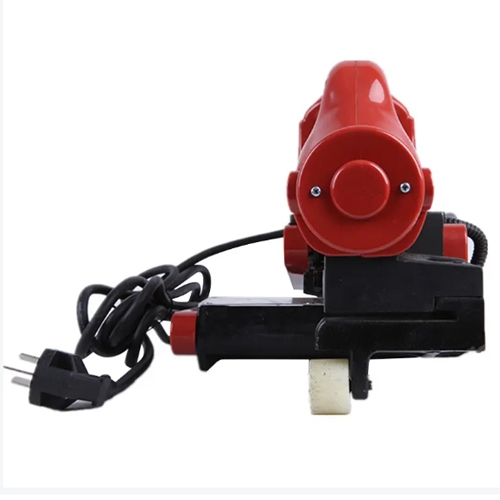

HDPE Geomembrane Wedge Welder WIN 810
The welding machine adopts the hot-wedge structure of cash, which is small in size and light in weight. It is suitable for welding all hot-melt materials such as HDPE, LDPE, PVC, EVA, ECB, PP, etc. The product is used in tunnels, subways, water conservancy, farming, Waterproof and anti-seepage projects in landfills, chemical mining, sewage treatment, roof construction and other fields.
Longer overlap width
The overlap width 150mm, Meet special welding requirements
Pressure Rollers
Imported silicone pressure roller, good elasticity, high temperature resistance, strong wear resistance; special knurled steel pressure roller, anti-slip, non-wear, better welding effect for membrane materials above 1mm.
Hot Wedge
The special Wedge is matched with high-power heating tube 1100W/800W which has high heating efficiency and long life time
Model WIN 810
Rated Voltage 230V/120V
Rated Power 800W/1100W
Frequency 50/60HZ
Heating Temperature 50~450℃
Welding Speed 1-5m/min
Material Thickness Welded 0.2mm-1.5mm(single layer)
Seam Width 12.5mm*2,Interior Cavity 12mm
Weld Strength ≥ 85% material
Overlap Width 15cm
Digital Display No
Body weight 5.5kg
Warranty 1 year
Certification CE
