Hand Extruder /  Plastic Hand Extrusion WIN 600A

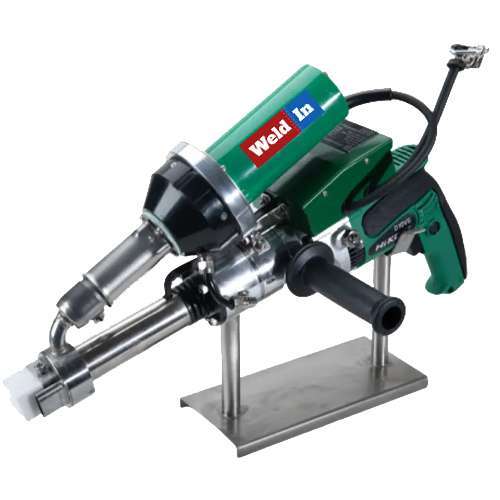

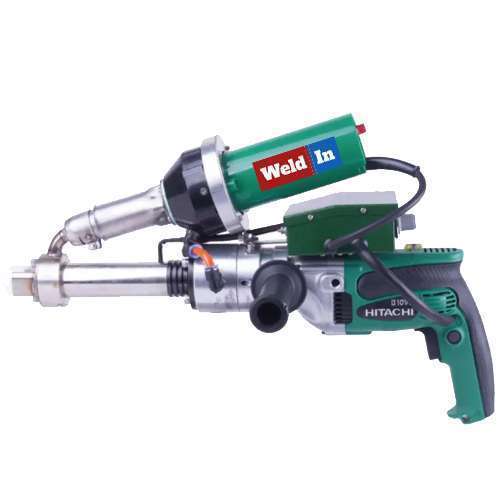

Plastic Hand Extrusion WIN 600A

Plastic Hand Extrusion WIN 600A

Plastic Hand Extrusion WIN 600A

Plastic Hand Extrusion WIN 600A

The extrusion welding gun is the first in China to provide functions such as dual independent heating of base material and welding rod, digital temperature control display, 360-degree rotating welding nozzle, and motor cold start protection. Using Japanese Hikoki electric drill as the extrusion motor, the machine is small and exquisite, the operation is convenient, the performance is stable, and it can be continuously welded. It is suitable for the welding of PE, PP plastics.

The intelligent control system adopts double protection, the cold start protection of the driving motor and the automatic compensation of the heating temperature to improve the reliability of the use of the extrusion welding torch, to avoid the fault caused by misoperation to the equipment as far as possible, and extend the service life of the machine.

Provide neutral packaging and small batch of customized services.

Provide a variety of welding boots small batch customization services.

The LCD display of the control box is more intuitive and convenient.

CE certification testing by third party.

360-degree rotatable Welding shoes and customized
360-degree rotatable Welding shoes, To meet the needs of different welding directions.
Customized service can be provided for welding boots of different sizes

Fault Code display
Manual available fault code table
Easy to check and repair

Digital Display Controller
Microcomputer chip control, easy and intuitive operation, strong protection function

Model WIN 600A
Rated Voltage 230V
Frequency 50/60HZ
Extruding Motor Power 800W
Hot Air Power 1600W
Welding Rod Heating Power 800W
Air Temperature 20-620℃
Extruding Temperature 50-380℃
Extruding Volume 2.0-2.5kg/h
Welding Rod Diameter Φ3.0-5.0mm
Driving Motor Hitachi
Body weight 6.9kg
Certification CE
Warranty 1 year
